| 基本尺寸 | 基本額定載荷 | 軸承類型 | 軸承圖片 | 型號 | |||
|---|---|---|---|---|---|---|---|
| dynamic | static | Type | Images | Model | |||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | |||

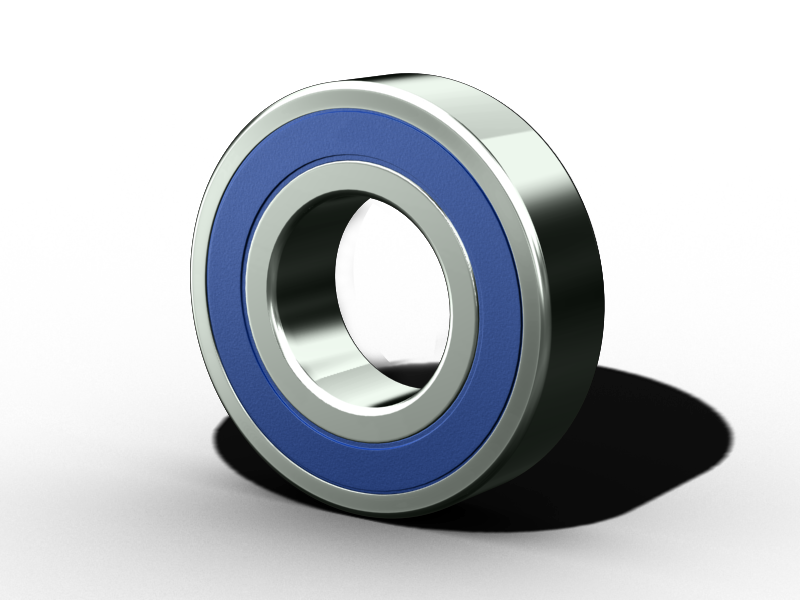

| 75 | 130 | 25 | 68.9 | 49 | 深溝球軸承 |  |
6215-2RS1/HC5C3WT |
| 70 | 125 | 24 | 63.7 | 45 | 深溝球軸承 | |
6214/HC5C3 |
| 70 | 150 | 35 | 111 | 68 | 深溝球軸承 | |
6314/HC5C3 |
| 70 | 125 | 24 | 63.7 | 45 | 深溝球軸承 | |
6214-2RS1/HC5C3WT |
| 65 | 120 | 23 | 58.5 | 40.5 | 深溝球軸承 | |
6213-2RS1/HC5C3WT |
| 65 | 140 | 33 | 97.5 | 60 | 深溝球軸承 | |
6313/HC5C3 |
| 65 | 140 | 33 | 97.5 | 60 | 深溝球軸承 | |
6313-2RS1/HC5C3WT |
| 65 | 120 | 23 | 58.5 | 40.5 | 深溝球軸承 | |
6213/HC5C3 |
| 60 | 110 | 22 | 55.3 | 36 | 深溝球軸承 | |
6212/HC5C3 |
| 60 | 130 | 31 | 85.2 | 52 | 深溝球軸承 | |
6312/HC5C3 |
| 60 | 130 | 31 | 85.2 | 52 | 深溝球軸承 | |
6312-2RS1/HC5C3WT |
| 60 | 110 | 22 | 55.3 | 36 | 深溝球軸承 | |
6212-2RS1/HC5C3WT |
| 55 | 100 | 21 | 46.2 | 29 | 深溝球軸承 | |
6211/HC5C3 |
| 55 | 100 | 21 | 46.2 | 29 | 深溝球軸承 | |
6211-2RS1/HC5C3WT |
| 55 | 120 | 29 | 74.1 | 45 | 深溝球軸承 | |
6311-2RS1/HC5C3WT |
| 55 | 120 | 29 | 74.1 | 45 | 深溝球軸承 | |
6311/HC5C3 |
| 50 | 90 | 20 | 37.1 | 23.2 | 深溝球軸承 | |
6210-2RS1/HC5C3WT |
| 50 | 110 | 27 | 65 | 38 | 深溝球軸承 | |
6310/HC5C3 |
| 50 | 110 | 25 | 55.3 | 31.5 | 深溝球軸承 | |
6310-2RS1/HC5C3WT |
| 50 | 90 | 20 | 37.1 | 23.2 | 深溝球軸承 | |
6210/HC5C3 |
| 45 | 85 | 19 | 35.1 | 21.6 | 深溝球軸承 | |
6209-2RZTN9/HC5C3WT |
| 45 | 100 | 25 | 16.8 | 7.8 | 深溝球軸承 | |
6309-2RS1TN9/HC5C3WT |
| 40 | 80 | 18 | 32.5 | 19 | 深溝球軸承 | |
6208-2RZTN9/HC5C3WT |
| 40 | 68 | 15 | 17.8 | 11 | 深溝球軸承 | |
6008-2RZTN9/HC5C3WT |
| 35 | 62 | 14 | 16.8 | 10.2 | 深溝球軸承 | |
6007-2RZTN9/HC5C3WT |
| 35 | 72 | 17 | 27 | 15.3 | 深溝球軸承 | |
6207-2RZTN9/HC5C3WT |
| 30 | 62 | 16 | 20.3 | 11.2 | 深溝球軸承 | |
6206-2RZTN9/HC5C3WT |
| 30 | 55 | 13 | 13.8 | 8.3 | 深溝球軸承 | |
6006-2RZTN9/HC5C3WT |
| 25 | 47 | 12 | 11.9 | 6.55 | 深溝球軸承 | |
6005-2RSLTN9/HC5C3WT |
| 25 | 52 | 15 | 14.8 | 7.8 | 深溝球軸承 | |
6205-2RSLTN9/HC5C3WT |
